Barn Plan
768
Sq ft
0
Beds
1
Baths
1
Stories
1
Garages
Choose from the options below to tailor your plan purchase and optional add-ons.
See ‘Pricing information’
$
Excluding tax
£
Excluding VAT
€
Excluding VAT
Credit/Debit Cards and PayPal accepted.
Microspot Ltd. offers standard terms and conditions for the purchase, use and sharing of our plan sets. Check out the links below for more information on the key terms and conditions relating to your plan set purchases.
License Agreement and Copyright Notices
Microspot Ltd. maintains a NO RETURN/NO EXCHANGE/NO REFUND policy. Because our plans are copyrighted and registered to each customer, we cannot allow refunds or exchanges. Please be sure of your selection before ordering, and feel free to contact our office at +44 (0)1622 793008 (Monday through Friday 9:00AM to 5:00PM BST) to discuss any concerns you may have before ordering.
All plans sets available from Microspot Ltd. come as a digital download only. The delivery of these digital downloads is by email, after receipt of successful payment.

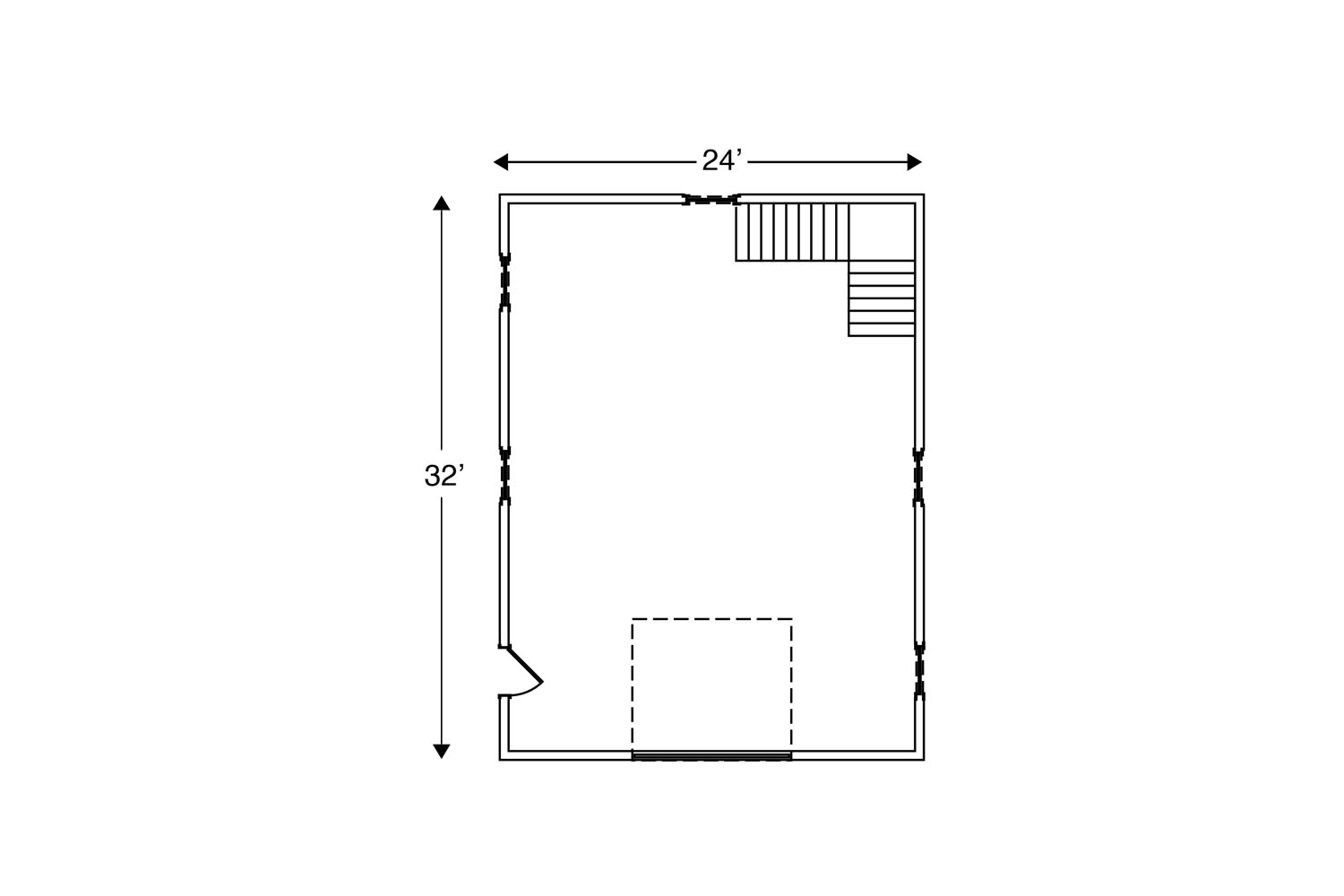

Detailed floor plan including all dimensions and building info.
Detailed floor plan including all dimensions and building info.

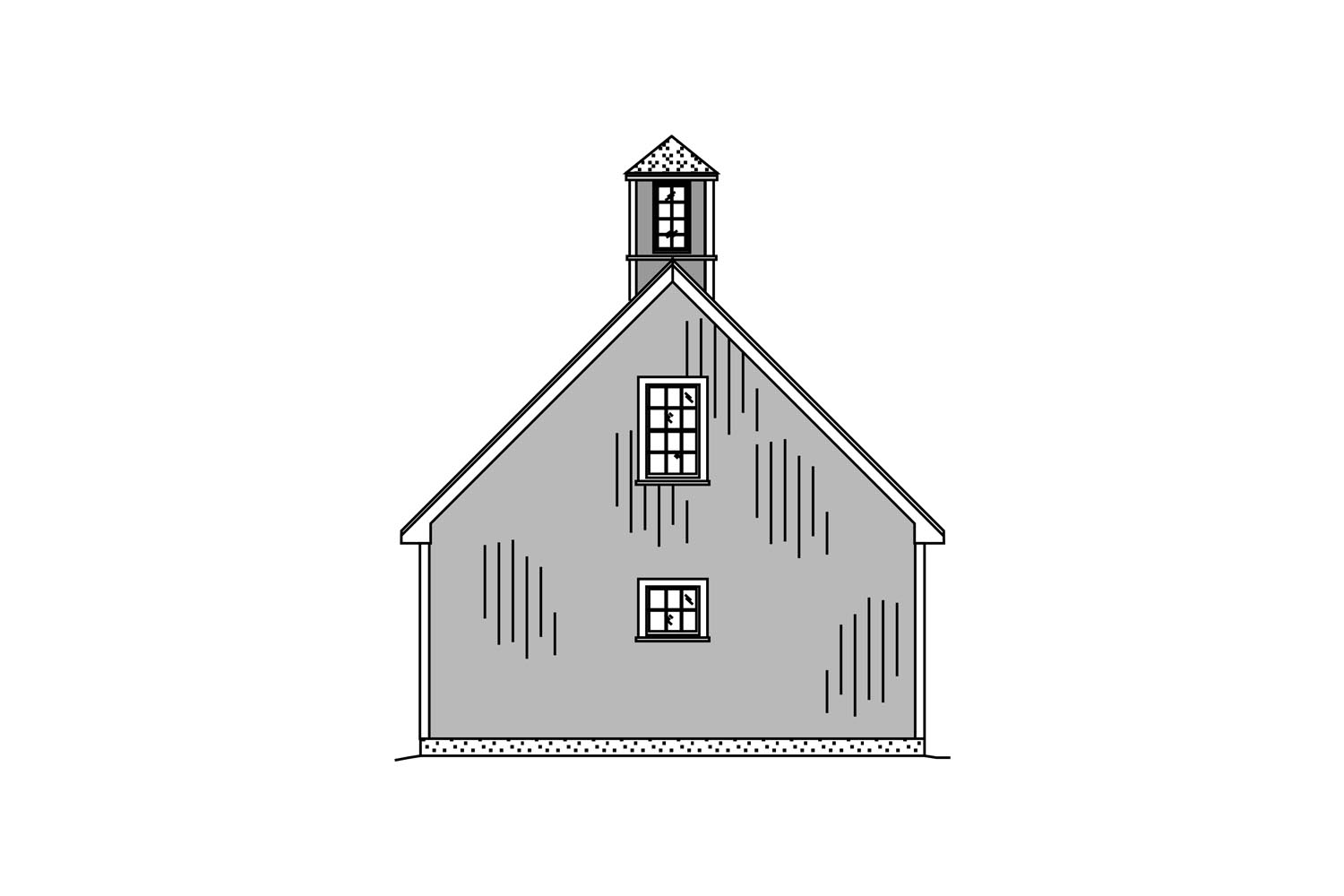

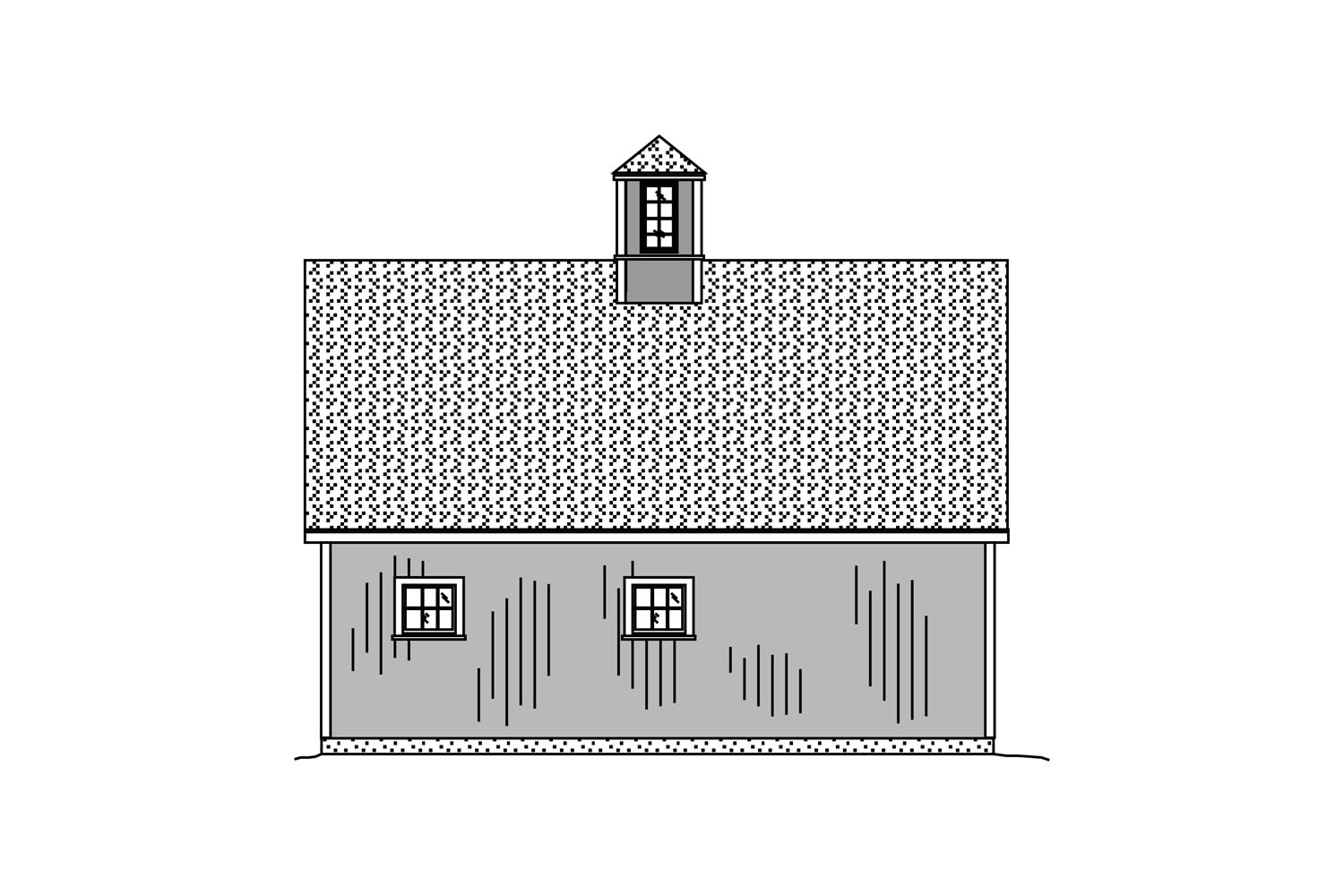

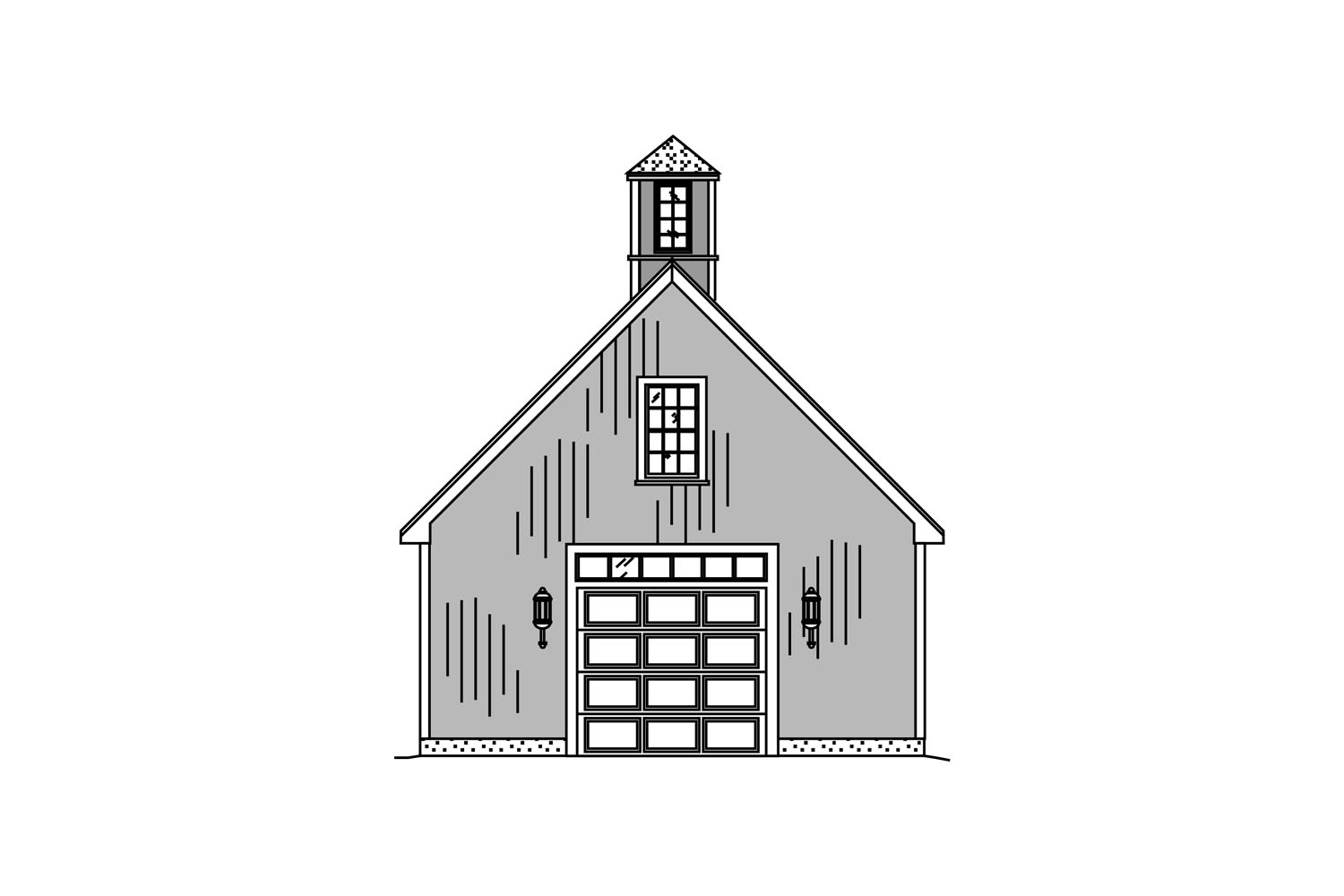

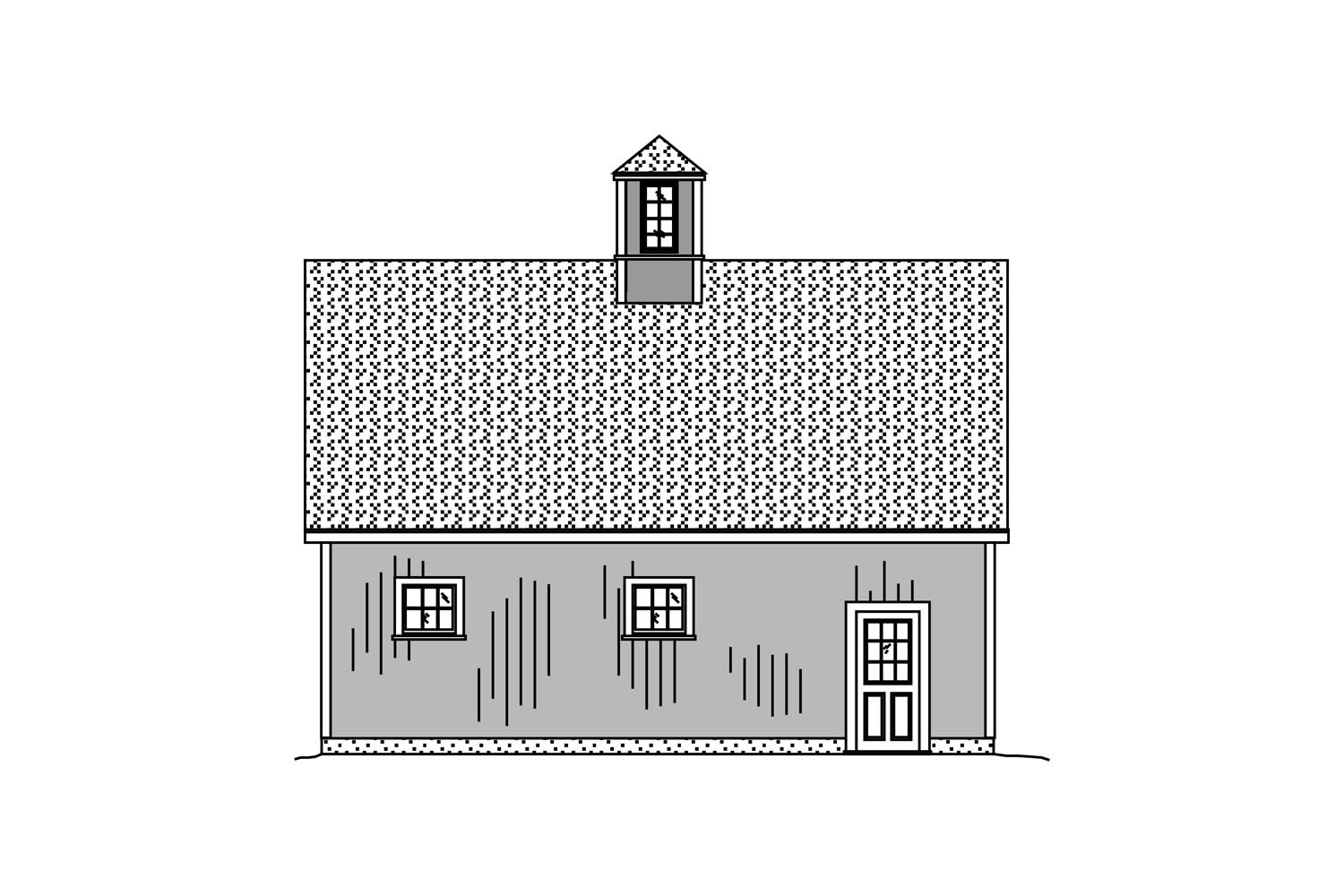

Cutaway drawings including all dimensions and building info.
Vector illustration for detail and layout reference.
Vector illustration for detail and layout reference
Vector illustration for detail and layout reference
Vector illustration for detail and layout reference
Main Ceiling: 9’ 6”, Pitch: 12:12, 2x10 Rafters 16” O.C, 1/2” CDX Exterior grade plywood, Single membrane underlayment, R-30 Batt insulation in living space below with styro-foam prop vents, Asphalt fiberglass roof shingles, 2x12 ridge beam, Continuous ridge vent
Cont. mtl drip edge, 1x3 upper facia board, 1x8 lower facia board, 1x12 soffit board, 2” cont. soffit vent, 2x4 nailer
2x6 studs 16” O.C, 1/2” CDX Exterior grade plywood, Building paper, R-19 Insulation, 8” shiplap siding
Gypsum wall board installed, 16d nails @ 24” o.c., Wood structural panel installed, 8d nails @ 6” o.c. on all framing members at panel edges and 12” o.c. on all framing members not at panel edges.
